XLR 3-Pin Microphone Metal Connector
The XLR Connector is the professional industry standard for balanced audio signals. It is primarily used in stage equipment, microphones, and high-end studio recording gear.
more informationSAR 15.00
+
Earn loyalty points with this purchase
Rewardsproduct sku
Z.182683.39364660000014305485
Weight
0.1 kg
share product
product description

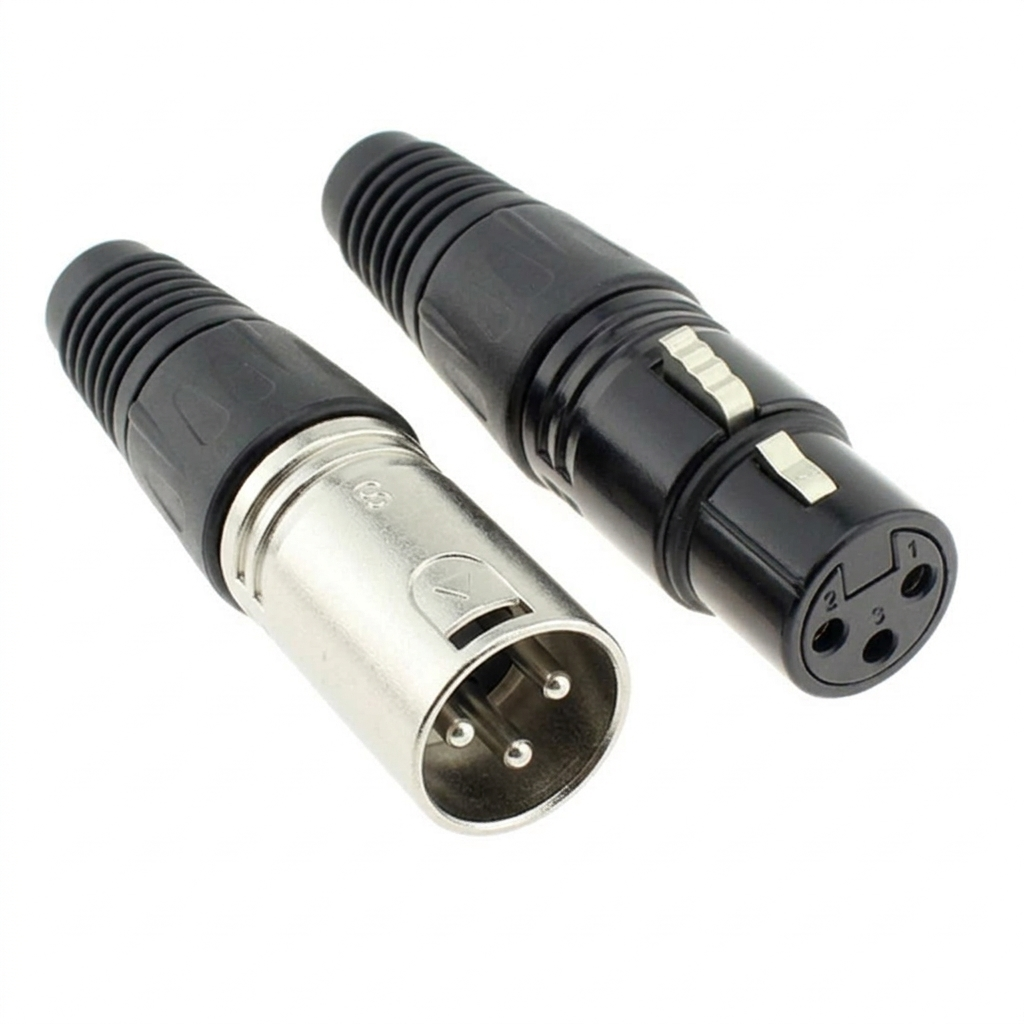

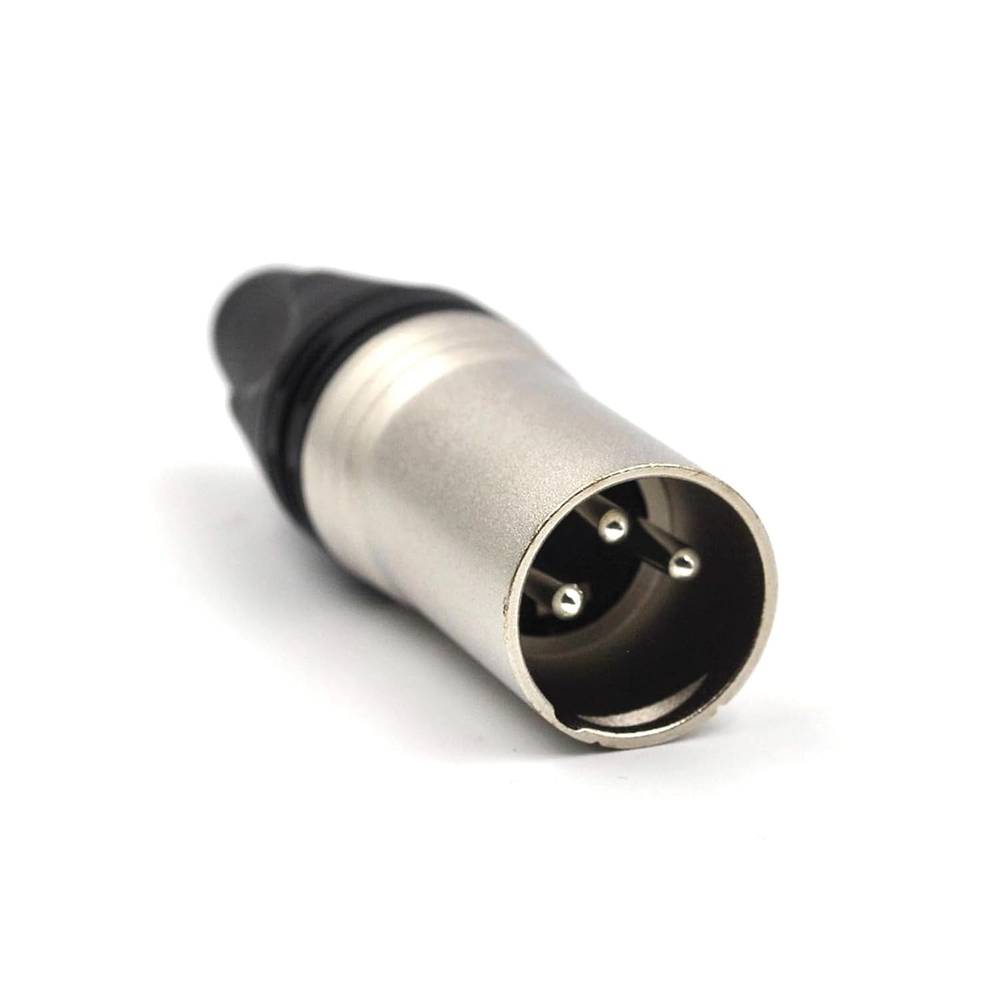

A professional-grade 3-pin XLR connector set featuring a male plug with a silver-finished zinc alloy shell and a female jack with a durable black finish. These connectors utilize a locking mechanism to prevent accidental disconnection and include flexible rubber strain relief boots to protect the cable from bending damage. Ideal for microphones, mixers, and professional lighting (DMX) applications.
| Specification | Details |
| Connector Type | 3-Pin XLR (Standard Audio/DMX) |
| Gender | Male (Silver) / Female (Black) |
| Housing Material | Zinc Die-Cast Alloy |
| Contact Material | Brass (Male) / Phosphor Bronze (Female) |
| Contact Plating | High-Conductivity Silver Plating |
| Voltage Rating | 250 V AC |
| Current Rating | 15A – 16A |
| Insulation Resistance | ≥ 5000 MΩ |
| Service Life | > 1000 Cycles |
| Temperature Range | -30°C to +80°C |
